42' x 48' Pinedale Monitor Barn Kit

Regular
$148,869

Sale
$136,460

POST & BEAM 1½ STORY MONITOR-STYLE BARN

Looking for a modern take on an original? Look no further than this Pinedale Monitor Barn Kit. With shiplap pine siding in the place of reclaimed wood, your barn can be painted or stained to your liking. Featuring a historic monitor barn design, the Pinedale has the style—and the space—for all your barn needs.

Additional Sizes Available

3D Model Get Started

Standard Features

18' x 48' Center Aisle; (2) 12' x 48' Enclosed Lean-to Overhangs
30-Minute Step by Step Timber Frame Raising Instructional Video
Great Country Timber Frames Toolbox (see store for items included)
Sealed Shop Drawings for Timber Frame with Foundation Plan
Exterior 2D Elevation Drawing Package
Authentic Mortise & Tenon Post & Beam Construction (12' Bent Spacing)
Eastern White Pine Timber Frame with Finished Planed Surface
Traditional Wood Joinery with Hardwood Oak Pegs (no visible fasteners)
6x8 Timber Sills, 8x8 Posts, 8x12 Tie Beams, 4x8 Loft Joists, 8x10 Rafter Plates, 4x8 Arched Braces, 4x4 Siding Nailers
10' First Floor Ceiling Height (17' center aisle eave height)
1x10 Premium Kiln Dried Shiplap Pine Material for Siding & Trim
10-12 Roof Pitch
4x10 Pine Rafters
18' x 48' Second Floor Loft Area with 7'-4" Knee-wall & 8' Collar Tie Height
1x8 Premium Kiln Dried T&G Pine V-Groove Loft Flooring & Roof Decking Material
Heavy Timber Pine Stairway to Second Floor (incl stringers, treads, risers, handrail, newel posts)
1' Eave Overhangs

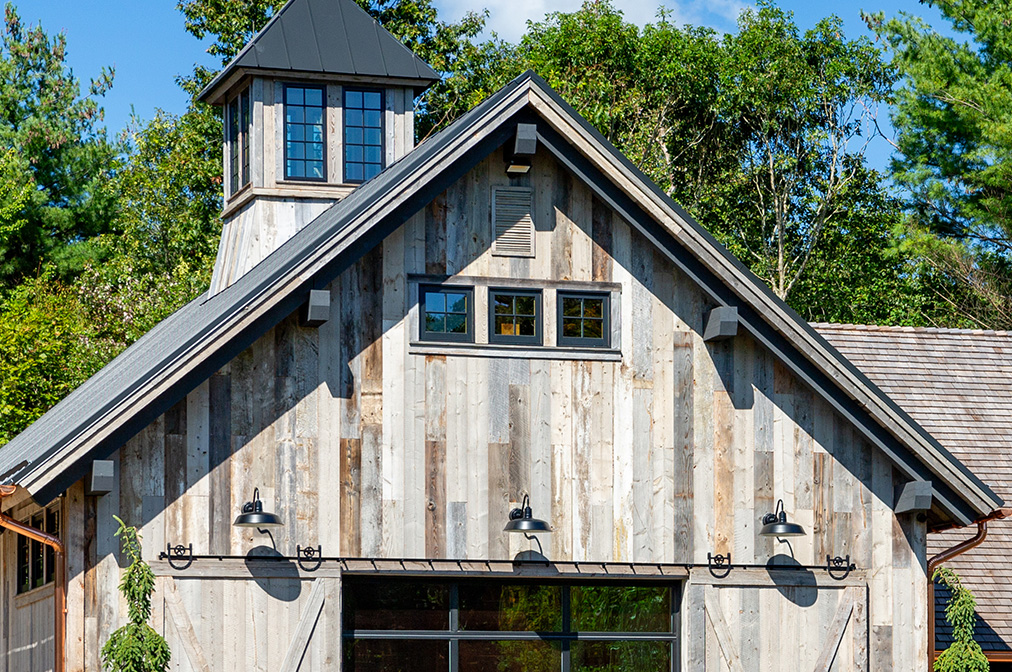

Timber Show Rafters on Exterior Gables
Framed Window & Door Openings per Customer Specifications
All Oak Pegs & Timberlok Fasteners Required to Assemble Timber Frame
Stainless Steel Concealed Knife Plates for Interior Posts
Sill Sealer & 2x8 Pressure Treated Plate
Pine Gable Vents

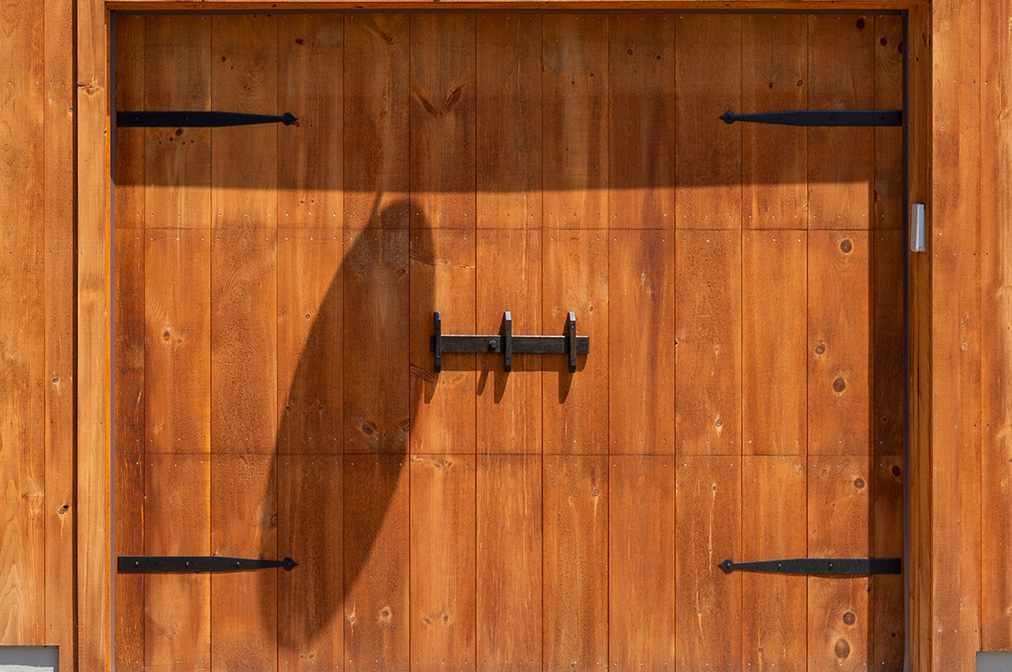

(3) Overhead Door Blacksmith Hardware Kit (includes decorative oak latch, 4 strap hinges)
(1) 3' x 7' Spanish Cedar Entry Door with 6-Lite Half Glass & Crossbucks
(6) 2'6" x 4' Andersen 400 Series Model TW24310 Tilt Wash Double Hung Windows (GBG)
(15) Andersen 400 Series A281 Awning Window
(2) 8' x 1' Andersen 400 Series Transom Windows (GBG)
